SPMG Drills

The SMOXH SPMG insert drill combines cost-efficiency with exceptional technical performance.

It can also be used in challenging drilling situations.

U-Drill - SDUM SPMG D2 for Stable Drilling | Rinaldi-Tools
SMOXH

U-Drill - SDUM SPMG D2

Price ab €116.00
Availability: 214748363 In Stock

Technical data

Drill-Type SDUM
Insert SPMG
Max. drilling depth 2xD
Packaging Unit 1 pc

Efficient Drilling for Demanding Applications

The U-Drill - SDUM SPMG D2 by SMOXH is designed for high stability and precision at drilling depths up to 2xD. It ensures efficient chip evacuation and convinces with its robust construction in demanding machining processes.

Advantages of U-Drill - SDUM SPMG D2

  • Precise and stable machining due to optimized construction
  • Maximum drilling depth of 2xD for standard applications
  • Designed for combined use with SPMG indexable inserts
  • High process reliability through controlled chip evacuation
U-Drill SDUM SPMG D3 3xD Tool by SMOXH | Rinaldi-Tools
SMOXH

U-Drill - SDUM SPMG D3

Price ab €123.00
Availability: 214748364 In Stock

Technical data

Drill-Type SDUM
Insert SPMG
Max. drilling depth 3xD
Packaging Unit 1 pc

High-performance U-Drill - SDUM SPMG D3

The U-Drill SDUM SPMG D3 by SMOXH is engineered for professional machining and precise deep drilling up to 3xD. Utilizing SPMG inserts, this tool provides high process reliability and supports efficient workflows in mass production.

Advantages of U-Drill - SDUM SPMG D3

  • Designed for drilling depths up to 3xD
  • Equipped with durable SPMG indexable inserts
  • Available in numerous variants from 12.5 to 54 mm
  • Promotes controlled and reliable chip evacuation
U-Drill SDUM SPMG D4 for 4xD deep drilling | Rinaldi-Tools
SMOXH

U-Drill - SDUM SPMG D4

Price ab €155.00
Availability: 214748363 In Stock

Technical data

Drill-Type SDUM
Insert SPMG
Max. drilling depth 4xD
Packaging Unit 1 pc

High-performance U-Drill for 4xD

The U-Drill SDUM SPMG D4 by SMOXH is engineered for high process reliability and machining efficiency. With a maximum drilling depth of 4xD, this tool holder allows for deep hole drilling without pilot holes, ensuring smooth chip evacuation in industrial applications.

Advantages of U-Drill - SDUM SPMG D4

  • Direct solid drilling without the need for a pilot hole
  • Designed for deeper drilling applications up to 4xD
  • Robust tool body for high stability during machining
  • Comprehensive range with 46 variants from Ø 12.5 to 40 mm
U-Drill SDUM SPMG D5 5xD Insert Drill | Rinaldi-Tools
SMOXH

U-Drill - SDUM SPMG D5

Price ab €156.00
Availability: 214748362 In Stock

Technical data

Drill-Type SDUM
Insert SPMG
Max. drilling depth 5xD
Packaging Unit 1 pc

U-Drill SDUM SPMG D5 for deep and precise drilling

The U-Drill SDUM SPMG D5 by SMOXH is a high-performance indexable insert drill designed for professional metalworking. Engineered for a maximum drilling depth of 5xD, it provides a reliable solution for demanding deep drilling tasks. Its robust body design ensures excellent stability and supports efficient manufacturing processes.

Advantages of U-Drill - SDUM SPMG D5

  • Engineered for a high maximum drilling depth of 5xD
  • Compatible with reliable SPMG inserts (e.g., SPMG 0502.. and SPMG 0602..)
  • Robust tool body for high process stability
  • Optimized for professional deep drilling operations
Drill Insert SPMG ...-PM RT300 | Rinaldi-Tools
Rinaldi-Tools GmbH

Drill Insert - SPMG ...-PM RT300

Price ab €4.70
Availability: 2147482677 In Stock

Technical data

Shape SPMG
Workpiece Material Steel and Stainless Steel
Grade RT300: PVD-coated P15-P25 and M10-M25 for universal use in steel, and stainless steel
Packaging unit 10 Pc

Dimensions

  r L I.C S
SPMG 050204-PM-RT300  0,4 5 5 2,38
SPMG 060204-PM-RT300  0,4 6 6 2,38
SPMG 07T308-PM-RT300   0,8 7,94 7,94 3,97
SPMG 090408-PM-RT300 0,8 9,8 9,8 4,30
SPMG 110408-PM-RT300   0,8 11,5 11,5 4,80
SPMG 140512-PM-RT300  1,2 14,3 14,3 5,20

Economical machining with the SPMG insert

The Drill Insert - SPMG ...-PM RT300 is designed for professional applications in indexable drills, offering a well-thought-out solution for cutting steel and stainless steel. Its wear-resistant PVD coating supports efficient workflows and ensures dependable drilling results in demanding single-part and batch production.

Advantages of Drill Insert - SPMG ...-PM RT300

  • Stable SPMG design for reliable drilling processes
  • PVD-coated RT300 grade for solid wear resistance
  • Broad suitability for steel and stainless steel (P15-P25, M10-M25)
  • Four usable cutting edges for economical tool usage
Drill Insert SPMG …-PM RT330 Steel & Iron | Rinaldi-Tools
Rinaldi-Tools GmbH

Drill Insert - SPMG ...-PM RT330

Price ab €4.70
Availability: 2147482817 In Stock

Technical data

Shape SPMG
Material Steel, Stainless Steel and Cast Iron
Grade RT330: PVD-coated P15-P25 and M10-M25 for universal use in steel, and stainless steel
Packaging unit 10 Pc

Dimensions

  r L I.C S
SPMG 050204-PM-RT330  0,4 5 5 2,38
SPMG 060204-PM-RT330  0,4 6 6 2,38
SPMG 07T308-PM-RT330   0,8 7,94 7,94 3,97
SPMG 090408-PM-RT330 0,8 9,8 9,8 4,30
SPMG 110408-PM-RT330   0,8 11,5 11,5 4,80
SPMG 140512-PM-RT330  1,2 14,3 14,3 5,20

Drill Insert SPMG …-PM RT330

The SPMG …-PM RT330 drill insert is a versatile and reliable choice for professional hole-making operations. Designed for use in indexable insert drills, it offers excellent capabilities for machining steel, stainless steel, and cast iron. Thanks to the PVD-coated RT330 carbide grade, this insert supports smooth cutting processes across various materials, providing high process reliability and efficiency in everyday industrial applications.

Advantages of Drill Insert SPMG …-PM RT330

  • Versatile application range covering steel, stainless steel, and cast iron.
  • Durable PVD coating on the RT330 carbide grade for resilient cutting edges.
  • Covers a broad spectrum of drilling diameters from 12.5 mm up to 54 mm.
  • Adaptable to various cutting speeds and feed rates for optimized performance.
  • Supplied in a practical packaging unit of 10 pieces for straightforward inventory management.
Drill Insert SPGT ALZ for Aluminum & Plastics | Rinaldi-Tools
Rinaldi-Tools GmbH

Drill Insert - SPGT ...-ALZ RT100

Price ab €4.70
Availability: 2147483327 In Stock

Technical data

Shape SPGT
Material Aluminum, Plastics & NF-Metals
Grade RT100: Uncoated K10-K15 carbide for Aluminum and plastics
Packaging unit 10 Pc

Dimensions

  r L I.C S
SPGT 050204-ALZ-RT100 0,4 5 5 2,38
SPGT 060204-ALZ-RT100 0,4 6 6 2,38
SPGT 07T308-ALZ-RT100   0,8 7,94 7,94 3,97
SPGT 090408-ALZ-RT100 0,8 9,8 9,8 4,30
SPGT 110408-ALZ-RT100 0,8 11,5 11,5 4,80
SPGT 140512-ALZ-RT100 1,2 14,3 14,3 5,20

High-performance indexable drilling in non-ferrous materials

The SPGT ...-ALZ drill insert in the RT100 grade is specifically designed for the reliable machining of aluminum, plastics, and non-ferrous metals. Manufactured from uncoated K10-K15 solid carbide, this insert offers excellent cutting properties and supports efficient workflows in professional manufacturing environments.

Advantages of Drill Insert SPGT

  • Optimized geometry for aluminum, plastics, and NF-metals
  • Wear-resistant uncoated K10-K15 carbide substrate
  • Available with corner radii from 0.4 mm to 1.2 mm
  • Economical packaging unit with 10 pieces per box

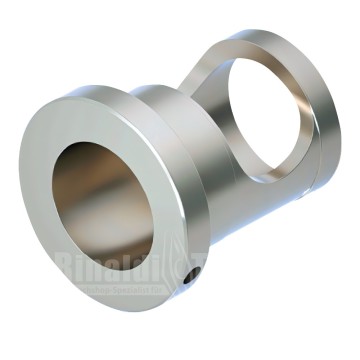

Eccentric Sleeve for U-Drills | Rinaldi-Tools

Eccentric Sleeve for U-Drills

Price ab €43.00
Availability: 999999 In Stock

Dimensions

Drill Shank (d) D L
SEA 20-25 20 25 46,5
SEA 25-32 25 32 47
SEA 32-40 32 40 57

Stepless Adjustment of Bore Diameters

The eccentric sleeve for U-drills opens up flexible possibilities for machining on milling machines. This high-quality adapter allows precise adjustment of the drill diameter by offsetting the drill axis relative to the spindle axis, supporting dimensionally accurate workflows.

Advantages of the eccentric sleeve

  • Flexible adjustment range from -0.2 mm to +0.4 mm
  • Supports high dimensional accuracy for special diameters
  • Precise offset of the drill axis relative to the spindle axis
  • Facilitates efficient workflows in milling operations
Drill Insert SPGT PM RT380 for Steel & Cast Iron | Rinaldi-Tools
Rinaldi-Tools GmbH

Drill Insert - SPGT...-PM RT380

Price ab €7.20
Availability: 2147483437 In Stock

Technical data

Shape SPGT
Processing Drilling
Workpiece Material Steel and Cast Iron
Grade RT380: CVD-coated P20-P40/K20-K40 carbide substrate for machining steel and cast materials
Packaging unit 10 Pc.

Dimensions

r L I.C. S
SPGT 110408-PM RT380 0,8 11,5 11,5 4,76
SPGT 140512-PM RT380 1,2 14,3 14,3 5,2

High-performance drill insert for steel and cast iron

The SPGT...-PM RT380 drill insert is designed for demanding drilling operations in steel and cast materials. Thanks to its advanced cutting edge geometry, it supports efficient machining and reliable chip evacuation during professional metalworking tasks.

Advantages of the SPGT...-PM RT380

  • Wear-resistant CVD coating for high thermal stability
  • P20-P40 and K20-K40 carbide substrate for versatile applications
  • Square insert shape (SPGT) ensuring precise drilling results
  • Convenient packaging unit of 10 pieces for batch production
