Form Mill - SF RD 10T3/1204
Form Mill - SF RD 10T3/1204
Form Mill - SF RD 10T3/1204
Form Mill - SF RD 10T3/1204
Form Mill - SF RD 10T3/1204
Form Mill - SF RD 10T3/1204
    Form Mill - SF RD 10T3/1204
    Form Mill - SF RD 10T3/1204
    Form Mill - SF RD 10T3/1204
    Form Mill - SF RD 10T3/1204
    Form Mill - SF RD 10T3/1204
    Form Mill - SF RD 10T3/1204

Form Mill - SF RD 10T3/1204

€112.00
Tax excluded
Insert size
Diameter
Lenght
Quantity

Mill type Form Milling Cutter
Insert RD 10T3/1204
Packaging unit 1 Pc.

- Optimal cutting edge utilization through indexing
- Robust milling cutter for a wide range of applications
- Particularly suitable for mold and die making



r ØD ød L1 L ap max Z
SF RD10T3 D32 L120 Z03-H 5 32 32 35 120 5 3
SF RD10T3 D40 L120 Z04-H 5 40 32 40 120 5 4
SF RD10T3 D32 L180 Z03-H 5 32 40 30 180 5 3
SF RD10T3 D40 L200 Z04-H 5 40 40 30 200 5 4
SF RD1204 D32 L120 Z03-H 6 32 32 35 120 6 3
SF RD1204 D40 L120 Z04-H 6 40 32 40 120 6 4
SF RD1204 D32 L180 Z03-H 6 32 40 30 180 6 3
SF RD1204 D40 L200 Z04-H 6 40 32 30 200 6 4

Item Nr. r ØD ød L1 L ap max Z Insert Screw
SF RD10T3 D32 L120 Z03-H 2251051 5 32 32 35 120 5 3 RD.. 10T3 IPM3,5x8
SF RD10T3 D40 L120 Z04-H 2251052 5 40 32 40 120 5 4
SF RD10T3 D32 L180 Z03-H 2251053 5 32 40 30 180 5 3
SF RD10T3 D40 L200 Z04-H 2251054 5 40 40 30 200 5 4
SF RD1204 D32 L120 Z03-H 2251055 6 32 32 35 120 6 3 RD.. 1204 IPM3,5x8
SF RD1204 D40 L120 Z04-H 2251056 6 40 32 40 120 6 4
SF RD1204 D32 L180 Z03-H 2251057 6 32 40 30 180 6 3
SF RD1204 D40 L200 Z04-H 2251058 6 40 32 30 200 6 4

Rinaldi-Tools GmbH
2251051

Compatible products

Round Milling Insert RDMT ...MO-M RT305H | Rinaldi-Tools
Rinaldi-Tools GmbH

Round Milling Insert - RDMT ...MO-M RT305H

Price ab €3.90
Availability: 9999420 In Stock

Technical data

Shape RDMT
Processing Medium
Workpiece Material Steel, Stainless Steel, Cast Iron, Special Alloys, Hardened Steel
Grade RT305H: PVD-coated High-Performance grade for a wide range of usage
Packaging unit 10 Pc.

Dimensions

I.C. S d
RDMT 10T3MO-M RT305H 10 3,97 4,1
RDMT 1204MO-M RT305H 12 4,76 4,1

High-performance round milling insert for versatile machining

The RDMT ...MO-M RT305H is a PVD-coated high-performance indexable insert specifically designed for medium milling operations. It is well-suited for professional applications in steel, stainless steel, special alloys, and hardened steel. This round milling insert offers a reliable solution for demanding cutting tasks.

Advantages of RDMT ...MO-M RT305H

  • PVD-coated high-performance grade for a wide range of usage
  • Low cutting forces due to positive cutting edge design
  • Twist-proof insert seating via indexing
  • Available in a convenient packaging unit of ten inserts
RDMW ...MO-H RT305H Milling Insert for Roughing | Rinaldi-Tools
Rinaldi-Tools GmbH

Indexable insert - RDMW ...MO-H RT305H

Price ab €3.90
Availability: 2147483347 In Stock

Technical data

Shape RDMW
Processing Medium / Roughing
Workpiece Material Steel, Hardened Steel
Grade RT305H: PVD-coated High-Performance grade for a wide range of usage
Packaging unit 10 Pc.

Dimensions

I.C. S d
RDMW 10T3MO-H RT305H 10 3,97 4,1
RDMW 1204MO-H RT305H 12 4,76 4,1

Reliable Round Milling Insert for Roughing

The indexable milling insert RDMW ...MO-H RT305H is designed specifically for demanding medium machining and roughing tasks. Featuring a robust geometry and the PVD-coated high-performance grade RT305H, this insert establishes solid conditions for the consistent cutting of steel and hardened steel. A key feature of this model is its specialized indexing, which ensures a firm, twist-proof seating in the tool holder.

Advantages of the indexable insert RDMW ...MO-H RT305H

  • Twist-proof insert seating via indexing, supporting overall process stability
  • PVD-coated high-performance RT305H grade for a wide range of usage
  • Practical design for medium machining and roughing operations
  • Robust RDMW shape supports effective chip evacuation in steel and hardened steel
  • Convenient packaging unit of 10 pieces for professional manufacturing workflows
Indexable insert - RDMW ...MO-H RT250K
Rinaldi-Tools GmbH

Indexable insert - RDMW ...MO-H RT250K

Price ab €3.90
Availability: 10000 In Stock
Shape RDMW
Processing Medium / Roughing
Workpiece Material Cast Iron
Grade RT250K: CVD-coated K10-K20 carbide for cast machining
Packaging unit 10 Pc.

- Twist-proof insert seating via indexing

I.C. S d
RDMW 10T3MO-H RT250K 10 3,9 4,1
RDMW 1204MO-H RT250K 12 4,76 4,1

10 other products in the same category:

Copy Mill SRT04 Slim Version | Rinaldi-Tools
Rinaldi-Tools GmbH

Copy Mill - SRT04 Slim Version

Price ab €129.00
Availability: 10000 In Stock

Technical data

Mill type Form Milling Cutter
Insert RTHX
Packaging unit 1 Pc.

Dimensions

R ØD ød Ød1 L1 L
SRT04-D12-G12-M 6 12 12 11 35 125
SRT04-D12-G12-L 6 12 12 11 45 150
SRT04-D16-G16-M 8 16 16 14 40 150
SRT04-D16-G16-L 8 16 16 14 55 180
SRT04-D20-G20-M 10 20 20 18 65 180
SRT04-D20-G20-L 10 20 20 18 100 250
SRT04-D25-G25-M 12,5 25 25 23 70 200
SRT04-D25-G25-L 12,5 25 25 23 100 250
SRT04-D30-G32-M 15 30 32 27 80 250
SRT04-D30-G32-L 15 30 32 27 110 300
SRT04-D32-G32-M 16 32 32 29 80 250
SRT04-D32-G32-L 16 32 32 29 110 300

Cost-effective semi-finishing with the SRT04

The Copy Mill - SRT04 Slim Version is a professional machining tool engineered for precise form milling. The slender design ensures safe access to deeper workpiece areas and has been specifically developed for use with RTHX inserts.

Advantages of Copy Mill - SRT04 Slim Version

  • First choice for cost-effective semi-finishing of molds and dies
  • Slim version allows excellent accessibility in tight contours
  • Secure insert pocket optimized for high-performance RTHX inserts
  • Supports excellent surface qualities through low-vibration operation
Face and Form Mill - MK RD 10T3/1204
Rinaldi-Tools GmbH

Face and Form Mill - MK RD 10T3/1204

Price ab €167.00
Availability: 10000 In Stock
Mill type Face and Form Mill
Insert RD 10T3/1204
Packaging unit 1 Pc.

- Optimal cutting edge utilization through indexing
- Robust milling cutter for a wide range of applications
- Particularly suitable for mold and die making


r ØD ød L ap max Z
MK RD 10T3 D40 A16 Z06-H 5 40 16 40 5 6
MK RD 10T3 D50 A22 Z07-H 5 50 22 40 5 7
MK RD 10T3 D52 A22 Z07-H 5 52 22 40 5 7
MK RD 10T3 D63 A22 Z08-H 5 63 22 40 5 8
MK RD 10T3 D66 A22 Z08-H 5 66 22 40 5 8
MK RD 10T3 D80 A27 Z09-H 5 80 27 50 5 9
MK RD 1204 D40 A16 Z04-H 5 40 16 40 5 4
MK RD 1204 D40 A16 Z05-H 6 40 16 40 6 5
MK RD 1204 D50 A22 Z05-H 6 50 22 40 6 5
MK RD 1204 D50 A22 Z06-H 6 50 22 40 6 6
MK RD 1204 D52 A22 Z05-H 6 52 22 40 6 5
MK RD 1204 D52 A22 Z06-H 6 52 22 40 6 6
MK RD 1204 D63 A22 Z07-H 6 63 22 40 6 7
MK RD 1204 D63 A27 Z07-H 6 63 27 40 6 7
MK RD 1204 D66 A27 Z07-H 6 66 27 40 6 7
MK RD 1204 D80 A27 Z08-H 6 80 27 50 6 8

Form Mill ST RD SMOXH for Copy Milling | Rinaldi-Tools
SMOXH

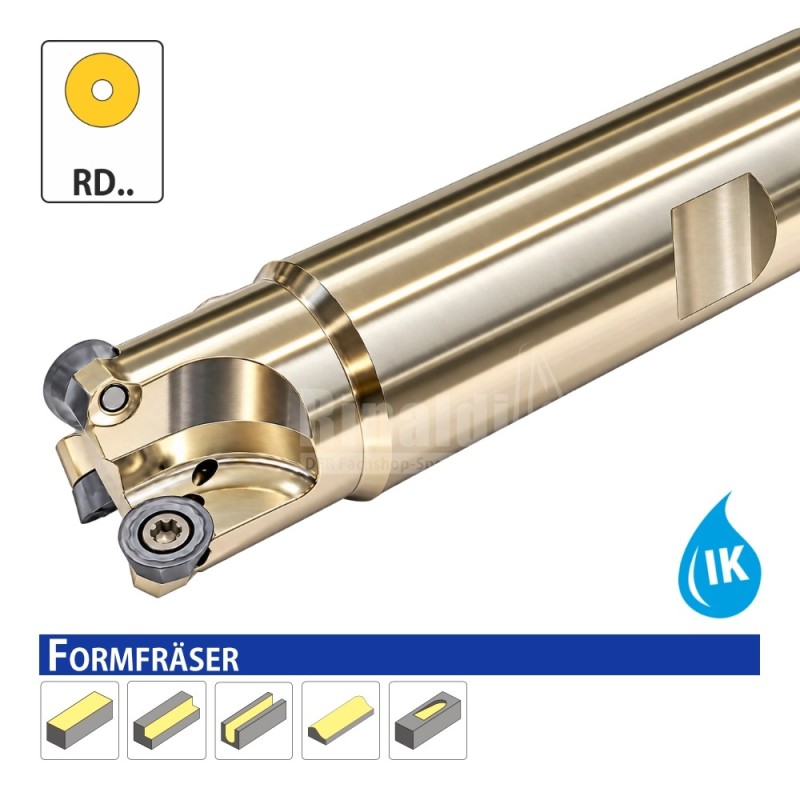

Form Mill - ST RD 0803../10T3../1204..
