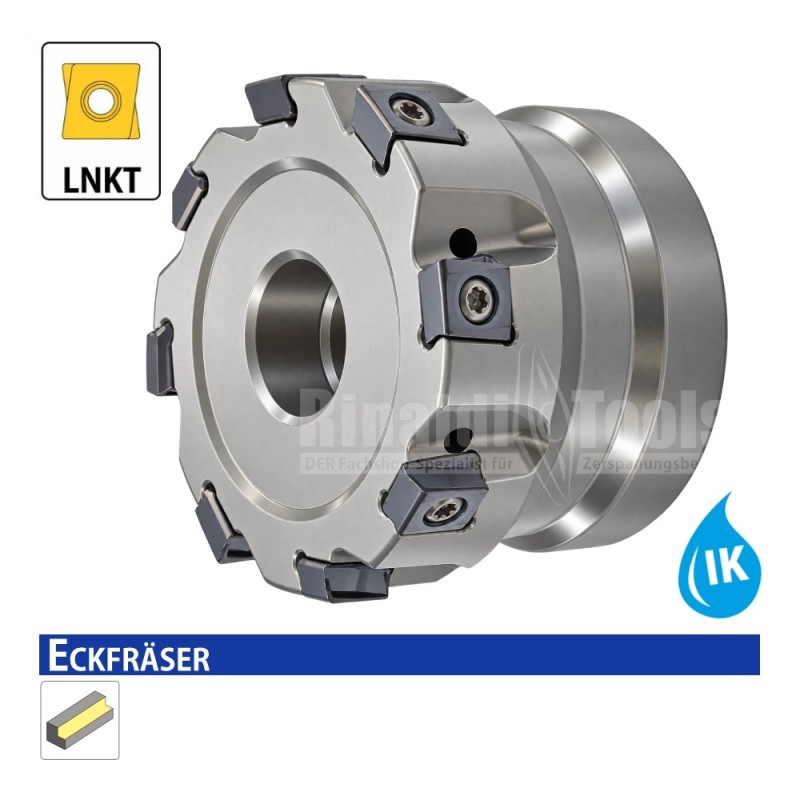

Shoulder Mill - MK90-T-LN

€179.00
Tax excluded
Diameter
Insert
Quantity

Technical data

Mill type Side Mill 90°
Insert LNKT...
Packaging unit 1 Pc.

Dimensions

  D Z d L ap max Aufn. Insert
MK90-T-LN08-D040-A16-Z05-H 40 5 16 40 8 A LNKT 08...
MK90-T-LN08-D050-A22-Z06-H 50 6 22 40 8 A LNKT 08...
MK90-T-LN08-D063-A22-Z08-H 63 8 22 40 8 A LNKT 08...
MK90-T-LN08-D080-A27-Z10-H 80 10 27 50 8 A LNKT 08...
MK90-T-LN12-D040-A16-Z04-H 40 4 16 40 11,5 A LNKT 12...
MK90-T-LN12-D050-A22-Z05-H 50 5 22 40 11,5 A LNKT 12...
MK90-T-LN12-D063-A22-Z06-H 63 6 22 40 11,5 A LNKT 12...
MK90-T-LN12-D080-A27-Z07-H 80 7 27 50 11,5 A LNKT 12...
MK90-T-LN12-D100-B32-Z09-H 100 9 32 50 11,5 B LNKT 12...
MK90-T-LN12-D125-B40-Z11-H 125 11 40 63 11,5 B LNKT 12...
MK90-T-LN16-D080-A27-Z06-H 80 6 27 50 15 A LNKT 16...
MK90-T-LN16-D100-B32-Z08-H 100 8 32 50 15 B LNKT 16...
MK90-T-LN16-D125-B40-Z10-H 125 10 40 63 15 B LNKT 16...

High-performance indexable milling cutter

The shoulder mill with internal cooling holes is designed for LNKT inserts and provides reliable material removal during demanding 90-degree milling applications.

Advantages of Shoulder Mill - MK90-T-LN

  • Cooling holes for efficient chip evacuation
  • Optimized for LNKT inserts
  • Rigid body design for stable cutting processes
  • Available in various diameters

Reliable 90° shoulder milling cutter

The MK90-T-LN is a heavy-duty indexable milling cutter designed for efficient 90° operations. Equipped with internal cooling channels, it supports effective chip evacuation and can help reduce tool wear. Paired with appropriate LNKT inserts, this tool body delivers consistent material removal for roughing and medium machining tasks.

Technical data

Mill typ Side Mill 90°
Insert LNKT...
Packaging unit 1 Pc.
  • Mill type: Side Mill 90°
  • Design: With cooling holes
  • Compatibility: LNKT inserts
  • Packaging unit: 1 Pc.

Dimensions of Shoulder Mill - MK90-T-LN

Item Nr. D Z d L ap max Coupling Insert Screw
MK90-T-LN08-D040-A16-Z05-H 2101221 40 5 16 40 8 A LNKT 08 IPM 3x7
MK90-T-LN08-D050-A22-Z06-H 2101222 50 6 22 40 8 A
MK90-T-LN08-D063-A22-Z08-H 2101223 63 8 22 40 8 A
MK90-T-LN08-D080-A27-Z10-H 2101224 80 10 27 50 8 A
MK90-T-LN12-D040-A16-Z04-H 2101225 40 4 16 40 11,5 A LNKT 12 IPM 4x12
MK90-T-LN12-D050-A22-Z05-H 2101226 50 5 22 40 11,5 A
MK90-T-LN12-D063-A22-Z06-H 2101227 63 6 22 40 11,5 A
MK90-T-LN12-D080-A27-Z07-H 2101228 80 7 27 50 11,5 A
MK90-T-LN12-D100-B32-Z09-H 2101229 100 9 32 50 11,5 B
MK90-T-LN12-D125-B40-Z11-H 2101230 125 11 40 63 11,5 B
MK90-T-LN16-D080-A27-Z06-H 2101231 80 6 27 50 15 A LNKT 16 IPM 5x17
MK90-T-LN16-D100-B32-Z08-H 2101232 100 8 32 50 15 B
MK90-T-LN16-D125-B40-Z10-H 2101233 125 10 40 63 15 B

Applications

This cutter is primarily intended for 90-degree shoulder milling in various industrial environments. Its rigid design allows for effective roughing as well as the removal of medium stock from steel and cast iron workpieces. It proves highly useful in general mechanical engineering and for machining precise contours and steps.

Special features

The integrated internal cooling system ensures continuous heat dissipation and fast chip transport out of the cutting zone. This protects the cutting edges of the inserts and can positively impact tool life. Furthermore, the reinforced tool body provides high resistance against lateral cutting forces, promoting a stable and low-vibration machining process.
